Customized Corrosion Resistant Zirconia Ceramic Rod With Cutting Service Available

Product Categories

Alumina Ceramic Disc [15]
Alumina Ceramic Tube [12]
Zirconia Ceramic Bead [9]
Alumina Ceramic Crucible [10]
Pyrolytic Boron Nitride Ceramics [9]
Alumina Ceramic Plate [10]
Boron Nitride Ceramics [9]
Alumina Ceramic Substrate [10]
Refractory Ceramics [15]
Alumina Ceramic Parts [16]
Alumina Ceramic Piston [11]
Alumina Ceramic Ring [10]
Electric Ceramics [11]
Zirconia Ceramic Piston [4]
Zirconia Rod Tube [12]
Zirconia Ball Mill Jar [10]
Zirconia Ceramic Parts [10]
Aluminum Nitride Substrates [10]
AIN Parts [11]
Metallized Ceramics [10]
Zirconia Ceramic Ring [10]

Hunan Yuanhong New Materials Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Customized Corrosion Resistant Zirconia Ceramic Rod With Cutting Service Available

Brand Name : YH

Model Number : YH

Certification : ISO，Rohs

Place of Origin : CHINA

MOQ : 10

Price : Negotiated

Payment Terms : L/C,T/T,Western Union,D/A,D/P

Supply Ability : 10000pcs per month

Delivery Time : 10-30days

Packaging Details : By carton

Inner Diameter : Customizable (for tubes and pipes), typically 0.5mm to 45mm

Density : 6.0 g/cm³

Outer Diameter : Customizable, typically 1mm to 50mm

Applications : High temperature insulation, chemical processing, electronics, medical devices

Operating Temperature : Up to 2400°C

Length : Customizable, typically 100mm to 1000mm

Manufacturing Process : Isostatic pressing, extrusion, sintering

Purity : ≥ 99.9%

Shape : Rod, Tube, Pipe

Thermal Conductivity : 2.5 W/m·K

Flexural Strength : ≥ 1000 MPa

Material : Zirconia (Zirconium Dioxide, ZrO2)

Contact Now

Customized Corrosion-Resistant Zirconia Ceramic Solid Rod with Thread Accessories Parts Cutting Service Available

The unique advantages of 99.9% ultra-pure yttria-stabilized zirconia (YSZ)​

Sample digestion often faces challenges from material incompatibility: glass tubes corrode in strong acids (e.g., aqua regia), quartz tubes leach silicon, and metal vessels introduce metallic ion contamination.

Ultra-pure YSZ addresses these issues comprehensively: its exceptional chemical stability resists attack from concentrated acids, bases, and oxidizing agents, while its high thermal conductivity ensures uniform temperature distribution during digestion. Its non-porous, polished inner surface prevents sample adsorption, making it the ideal choice for accurate trace element detection.​

Key functions include serving as a reaction vessel for microwave-assisted digestion, high-temperature fusion of solid samples, and ashing of organic matrices.

Widely used in inductively coupled plasma mass spectrometry (ICP-MS) sample preparation, atomic absorption spectroscopy (AAS) analysis, and environmental heavy metal testing—guaranteeing interference-free results that meet ISO and EPA standards.

Customized Corrosion Resistant Zirconia Ceramic Rod With Cutting Service Available

Technical Specifications

High-performance zirconia ceramic bush tubes designed for precision guiding, bearing, and insulating applications where

			exceptional durability, dimensional stability, and chemical resistance are required. Ideal for replacing traditional metal

			bushings in harsh operating conditions.
Material Properties
* Material: 95% Yttria-Stabilized Zirconia (YSZ)* Density: 6.05 g/cm³
* Hardness: HV1300-1500 (HRA 88-91)
* Flexural Strength: 900-1200 MPa
* Fracture Toughness: 8-10 MPa·m¹/²

Application

1. Chemical Processing Equipment: Pump bushings, valve guide sleeves, agitator bearings

2. Food & Beverage: Filling equipment, conveyor systems, food processing machinery

3. Semiconductor: Wafer handling equipment, vacuum chamber components4. Automotive Industry: Fuel systems, sensor components, special bearings

Basic Physical & Mechanical Properties

			Zirconia Ceramic Properties

			Item

			Unit

			Typical Values

			Physical Properties

			Color

			Customized

			Density

			g/cm3

			6.00

			Zirconia Content

			%

			94.4

			Gas Permeability

			0

			Water Absorption

			0

			Crystal Size

			um

			0.5

			Mechanical Properties

			Rockwell Hardness(45N)

			R45N

			78

			Modulus of Elasticity (20°C)

			Gpa

			>200

			Compressive Strength (20°C)

			Mpa

			2000

			Flexural Strength (20°C)

			 Mpa

			800

			Thermal Properties

			Thermal Expansion Coefficient

			 10-6/°C

			9.6

			Thermal Shock Resistance

			T°C

			250

			Thermal Conductivity (20°C-400°C)

			W/m.K

			2.5

Customized Corrosion Resistant Zirconia Ceramic Rod With Cutting Service Available

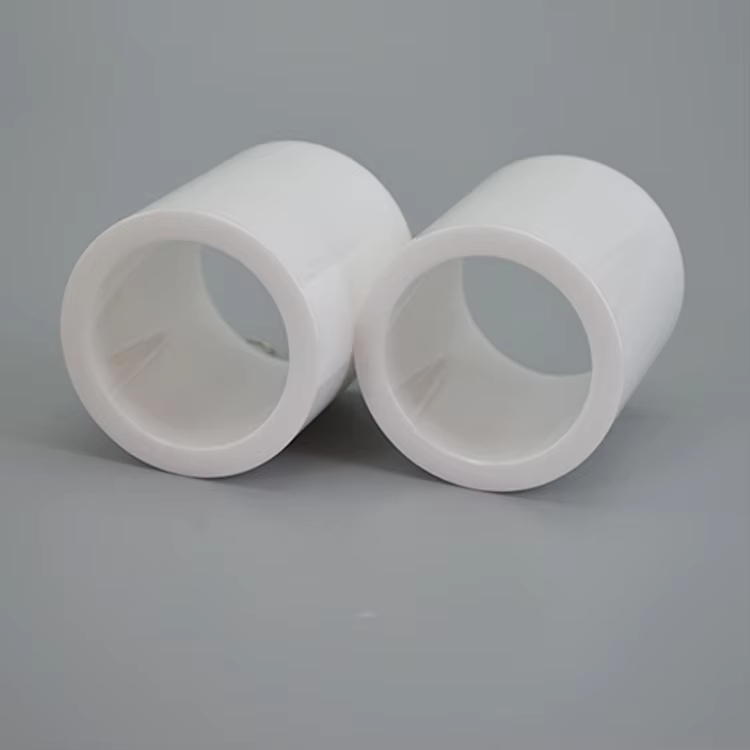

Zirconia Rod & Zirconia Tube Description

ZrO2 Ceramic Tubes and Rods have the advantages of super hardness, high wear-resisting, good corrosion resistance,

high-temperature tolerance, high strength, high mechanical strength, good chemical stability, polishing surface, and so on.
Zirconia Rod and Zirconia Tube are made of ZrO2 ceramics. Zirconia is an extremely refractory material.
It possesses excellent chemical inertness and corrosion resistance at temperatures up to 2200℃,
well above the melting point of alumina. Zirconia is stabilized in the cubic crystal structure to avoid
cracking and mechanical weakening during heating and cooling.



Product packaging

1: Individually packed in anti-static foam

2: Vacuum-sealed for moisture protection

3: Labeled with part number, dimensions, and material grade

4: Shock-resistant outer packaging

5: Available in bulk or custom packaging

Customized Corrosion Resistant Zirconia Ceramic Rod With Cutting Service Available

FAQ

Q1. Do you provide product samples?

Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods?

We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time?

Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment?

Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer?

We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
